• Designed for supply air or exhaust air terminal in constant air volume system.

• Units are mechanical self-balancing structure, and require no power.

• Adjust the airflow needle up to required airflow setpoint.

• Simple structure, reliable, and highly precise airflow.

• Simple installation and maintenance free, bedded in the pipe.

• Uses real science to create pure air that will allow you and your family to breath easier.

• Patented UVC germicidal technology destroys biological contaminants—achieving a whole new level of air cleaning.

• Reduces or eliminates symptoms of allergies, asthma or other maladies triggered by mold, bacteria and their metabolic products. Sterilization rate as high as 99.9%.

• Carbon absorption removes VOCs that create odors and trigger allergic reactions.

• Designed to provide superior comfort control to zones.

• FPS Unit’s fan runs continuously to deliver constant airflow to a zone during occupied hours.

• Primary air damper controls the primary air into the terminal unit delivered through the terminal’s fan.

• Ceiling plenum air is drawn through the return and mixed with primary inlet to supply air temperature and improve zone air movement.

• Utilizes analog or direct digital control.

• PCB power board allows for quick installations.

• Available with an ultra-high efficiency ECM motor technology.

• Attenuated casing constructed with high quality galvanized steel insulated with batted covered fiber-glass. Inlet flow measured with cross multi-point averaging sensor for pressureindependent terminals. Uses high performing low leakage blade damper.

• AHRI certified, with additional 3rd-party testing at the National Center of Quality Supervision.

• Placed in the floor within the supply air way, where air is pressurized in order to maintain air flow. The air direction flow is a swirl pattern.

• The outlet is adjustable with an airflow adjustment dial below the diffuser.

• The casing is secured with a simple screw flange; tightening the flange secures the diffuser.

• Dirt is caught below in a basket, and cleanable form the top of the diffuser.

• Suitable for constant air volume systems in low ceilings or narrow spaces.

• Automatic mechanical balancing, and requires no power supply.

• Set air volume by a manual dial air flow pointer.

• Economical, simple structure, reliable, with highly precise airflow control.

• Easy to use and flexible; can be inserted into ductwork for easy installation.

• Suitable for control of room’s fresh air supply and bathroom air exhaust.

• Designed for handling low temperature (39°F to 50°F) air in VAV system.

• Unit’s fan runs continuously and draws the ceiling plenum air to raise supply air temperature, thus eliminating the risk of condensed water at the diffusers’ face.

• Improved zone air movement.

• Superior to select and design diffusers.

• Attenuated casing constructed with high quality galvanized steel and insulated with batted covered fiber-glass. Inlet flow measured with cross multi-point averaging sensor for pressure-independent terminals. Utilizes high performing, low leakage blade damper.

• Designed to provide superior comfort control to zones.

• Unit’s fan runs upon requirement for heat.

• Primary air damper controls the primary air into the terminal unit and delivered directly into the occupied space, bypassing the unit’s fan.

• When the unit’s fan is operating, the ceiling plenum air is drawn through an induction inlet to raise supply air temperature.

• Utilizes analog or digital control.

• PCB power board allows for quick installations.

• Available with ultra-high efficiency ECM motor technology.

• Designed for supply air or exhaust air terminal in constant air volume systems.

• Units are mechanical self-balancing constructed, and require no power.

• Round inlet and outlet.

• Adjust the airflow needle up to the required airflow setpoint.

• Simple structure, reliable, highly precise airflow control, and wide application range.

• Simple installation and maintenance free.

• SVADs are equipped with control board, actuator, thermostat or remote controller. The damper position will be adjusted according to the temperature setting and room temperature.

• The SVAD is not only a VAV terminal, but also a diffuser and therefore saves on total cost. It costs less than any other VAV system.

• Suitable for constant volume and variable volume air systems.

• Suitable for various airflow system designs (pressure independent/dependent)

• Suitable for various control applications (pneumatic/analog/digital control)

• Designed to function with cooling only, cooling with reheat, and heating only applications.

• Attenuated casing constructed with high quality galvanized steel insulated with batted covered fiber-glass. Inlet flow measured with cross multipoint averaging sensor for pressure independent terminals. High performing low leakage blade damper.

• All models are AHRI & UL certified listed.

• Designed for supply air or exhaust air terminal in constant air volume systems.

• Units are mechanical self-balancing constructed, and requires no power.

• Round inlet and outlet.

• Adjust the air flow needle up to required airflow setpoint.

• Simple structure, reliable, high precision airflow control with wide application range.

• Simple installation and maintenance free.

• Suitable for constant volume and variable volume systems.

• Designed for air handling unit to control fresh air and return air, and supply air duct to control airflow.

• Suitable for different airflow system designs (pressure independent/dependent).

• Suitable for different control applications (Pneumatic/analog/digital control)

• Galvanized steel casing, “X” type multi-point averaging sensor for pressure independent mode. High performance inclined opposed aluminum alloy damper.

• Designed to control the static pressure of the designated area.

• Flexible in use, PIM regulating valve has different types (TU/RF/Q types) to fit different ductwork.

• Terminal includes static pressure probe to insert into the ductwork.

• The lower temperature series PIM terminals should be used together with low temperature series SVAD or TVAD RSVAV Diffusers.

• Designed for HVAC systems.

• Powered output is 5 times of traditional UVC lamp.

• Generates UVC light spectrum, which eliminates mold, bacteria and other contaminants. Improves indoor air quality (IAQ), with a sterilization rate of 99.9%.

• Continuously cleans coils, drain pains, plenums and ducts thus reducing cleanup costs.

• Reduces coil pressure drops and saves energy costs (up to 20%).

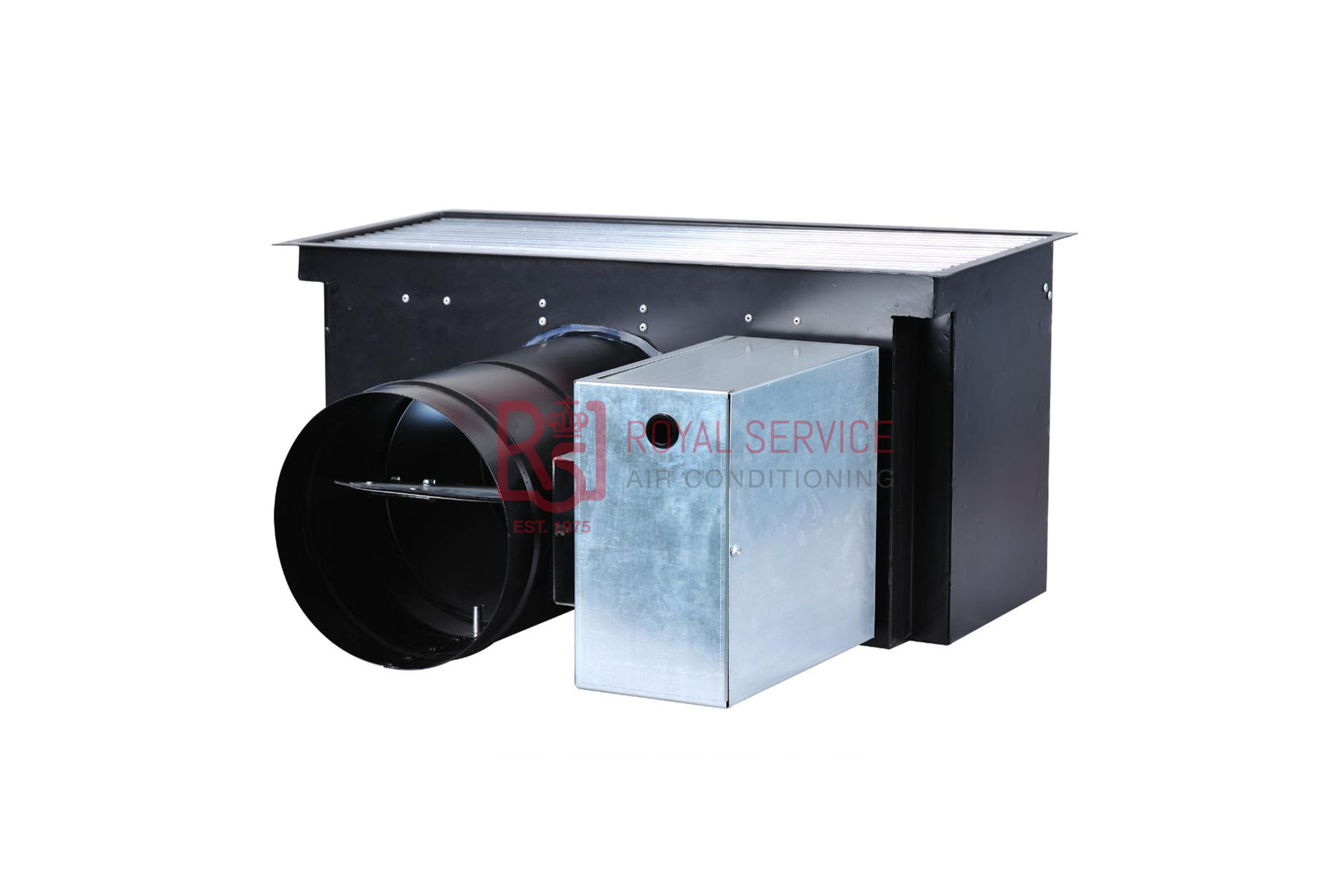

• Specially designed to meet applications designed for raised floor air distribution systems.

• Harmonized and simple design allows for quick installation and easy operation.

• Quiet constant fan operation.

• Suitable for different airflow system designs (Pressure independent/dependent).

• Suitable for analog and digital controls.

• Designed for application in various systems (cooling only/cooling with reheat/heating only).

• High quality, heavy duty, extruded aluminum linear grilles and low leakage air damper.

• Optional decorating plate and electric heater available.

• High efficiency and saves energy by utilizing an ECM motor.

• Variable or constant airflow supply, with high precision for air flow control.

• Pressure independent airflow control mode.

• Automatically adjusts motor speed from control signal.

• Optional: DDC controller with Ion-work network communications.

• Designed for use in raised floor distribution systems.

• Suitable for ducted or non-ducted applications.

• VAV cooling and CAV heating control.

• Pressure dependent airflow control mode.

• During heating application, the heat damper is opened by hot air static pressure.

• Low leakage cold air damper and modulating actuator provide precise airflow control.

• Hot air back draft damper driven by hot air pressure.

• High quality, heavy duty, extruded aluminum linear grilles.

• Designed for use in raised floor air distribution systems.

• Suitable for ducted or non-ducted applications.

• Pressure dependent airflow control mode.

• Designed to be utilized in various systems.

• High quality, heavy duty, extruded aluminum linear grilles and low leakage air damper.
